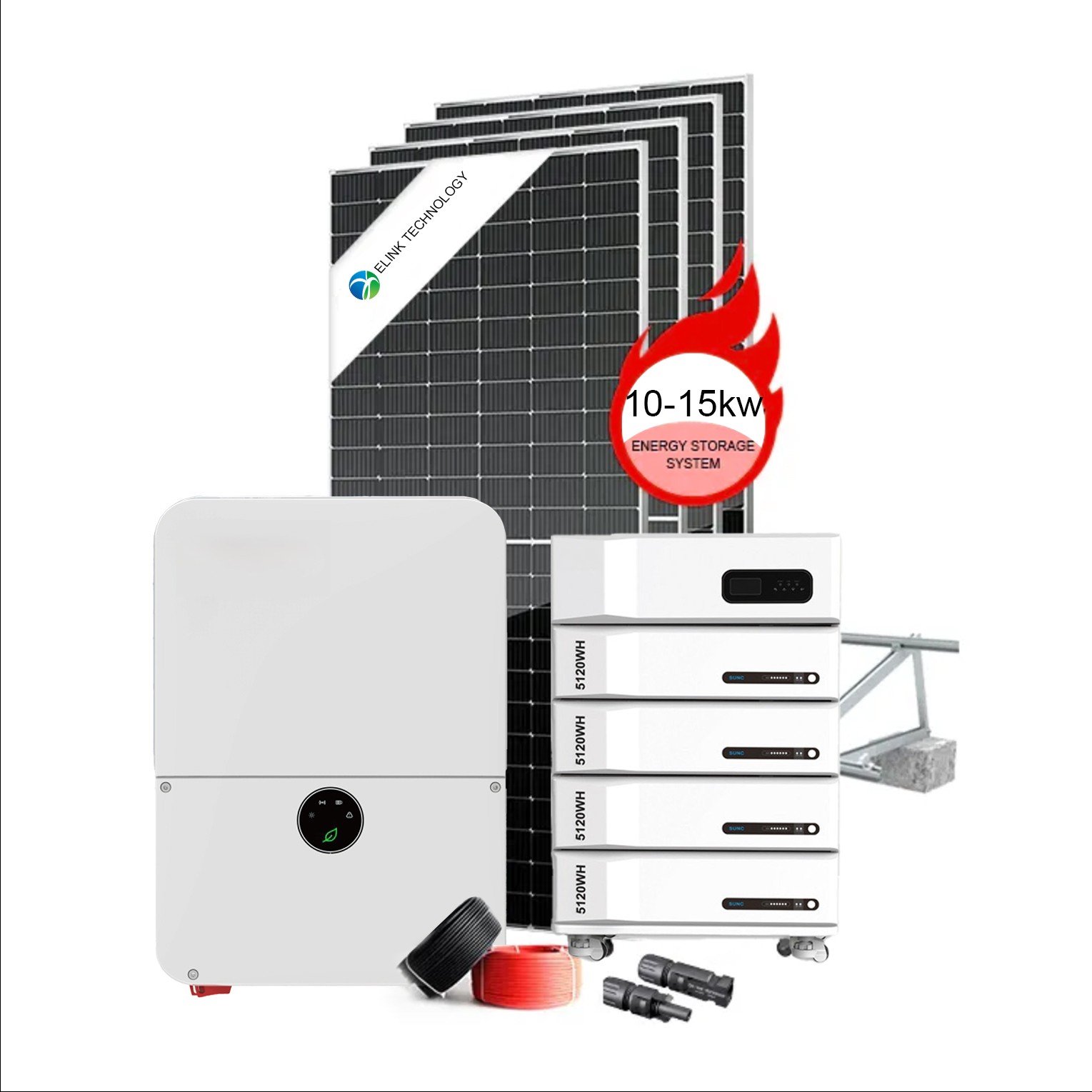

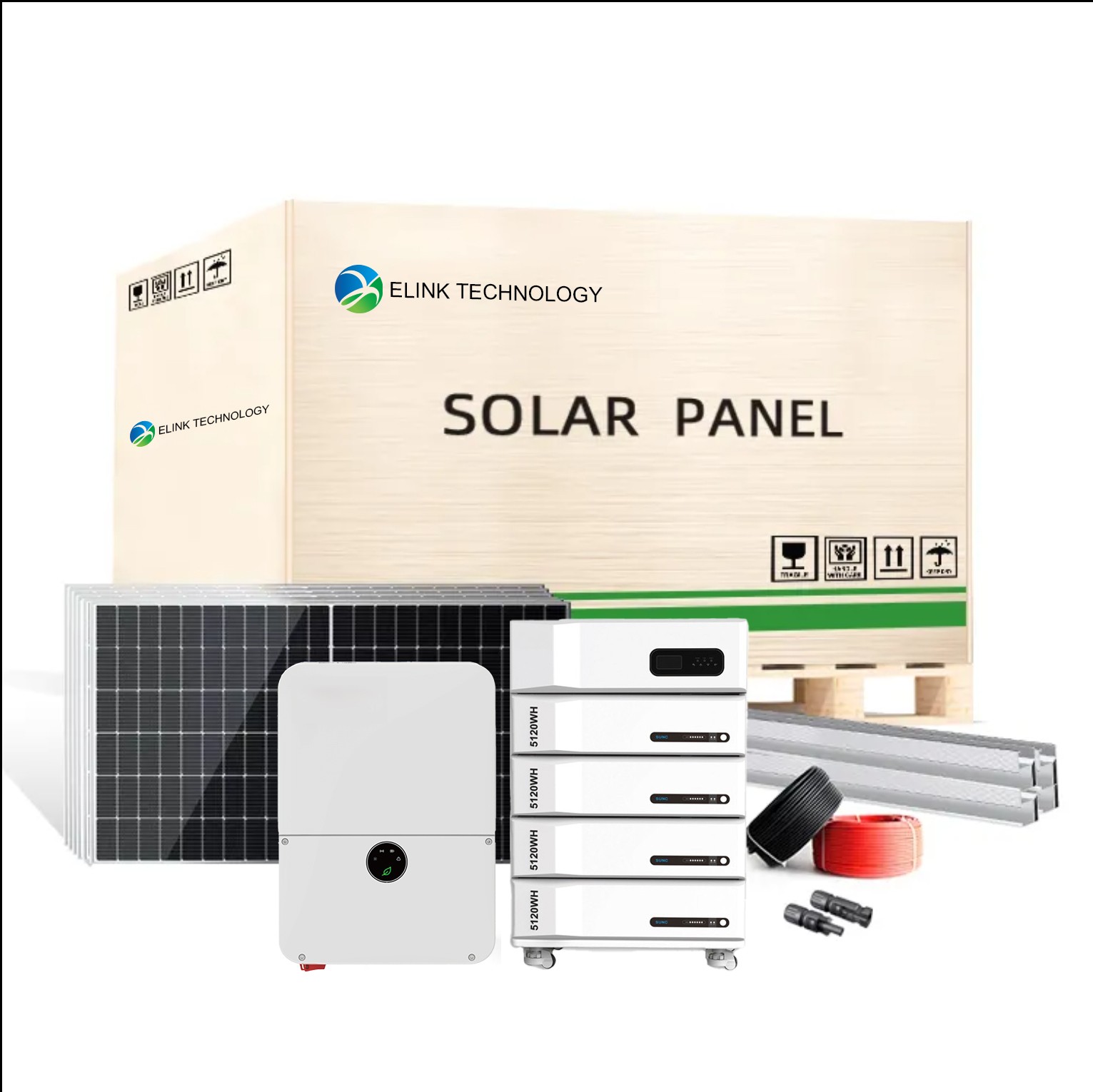

10~15kW Hybrid System with Brand Inverter for Residential
The 10~15kW hybrid solar system is a versatile solution for residential properties, offering a perfect balance between energy generation, storage, and grid backup. Equipped with a premium brand inverter, this system ensures high performance and energy efficiency, making it ideal for homes looking for sustainable and cost-effective energy independence.
| Electrical characteristics | ||||||
| Module type | ELKSKT590M10 | ELKSKT595M10 | ELKSKT600M10 | |||
| STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum power-Pmax(w) | 590 | 439 | 595 | 443 | 600 | 447 |
| Open circuit voltage-Voc(V) | 53.76 | 50.75 | 53.87 | 50.86 | 53.98 | 50.97 |
| Short circuit current-Isc(A) | 13.97 | 11.27 | 14.05 | 11.35 | 14.13 | 11.43 |
| Voltage at Pmax-Vmp(V) | 44.49 | 41.46 | 44.57 | 41.67 | 44.65 | 41.88 |
| Current at Pmax-Imp(A) | 13.27 | 10.59 | 13.36 | 10.63 | 13.45 | 10.67 |
| Module Efficiency-ηm(%) | 21.12 | / | 21.29 | / | 21.47 | / |
| Power Tolerance (w) | (0,+4.99W) | |||||
| Maximum System Voltage(V) | 1500VDC(IEC,UL) | |||||
| Maximum Series Fuse Rating(A) | 25A | |||||
| Mechanical Specifications | ||||||
| External Dimensions | 2464x1134x35mm | |||||
| Weight | 32kg | |||||
| Solar Cells | Mono crystalline 182mm (2x78pcs) | |||||
| Front Glass | AR Coated 3.2 mm tempered glass | |||||
| Frame | Anodized aluminum alloy | |||||
| Junction Box | IP68 | |||||
| Output Cables | 4.0mm², 50cm (+), 50cm (-), length can be customized | |||||
| Connector | MC4 EVO2 | |||||
| Mechanical Load | Front Side Max. 5400Pa, Rear Side Max. 2400Pa | |||||
| Packing Configuration | ||
| Dimensions | 2464x1134x35mm | |
| Container | 20’GP | 40’HQ |
| Pieces per Pallet | 31 | 31 |
| Pallets per Container | 4 | 16 |
| Pieces per Container | 124 | 496 |
| Model | ELKTCFUD6348MB | ELKTCFUD12548MB |
| AC Input Voltage | 220VAC (standard) | |
| Input voltage range | (90~275)VAC±3V (Normal mode) (170~275)VAC±3\/ (UPS mode) | |
| Input Frequency | (50 / 60)Hz ±5% | |
| Output Power | 5kw | 10kw |
| AC model output Voltage | The output voltage of mains is the same as the input voltage. | |
| AC model outout frequency | The output frequency of the mains is the same as the input frequency. | |
| Battery model output voltage | 220 VAC±10% | |
| Battery model output frequency | (50 / 60)Hz ±1% | |
| Battery model output wave | Pure sine wave | |
| Battery type | External lead -acid battery, Gel battery or Lithium battery. | |
| Battery voltage | 48VDC | |
| Battery charging voltage | 56.4VDC( 48V-61V ) | |
| Maximum PV array power | 3200W | 6400W |
| Solar input voltage range | 48V: MPPT 60v~150VDC (200VDC) | |
| Maximum PV Display Open Circuit Voltage | 48V: MPPT 150VDC(200VDC) | |
| Maximum solar charging current | 60A | 120A |
| Maximum AC Charge Current | 30A | 60A |
| Transfer Time | 10ms for UPS, 20ms for INV | |
| Load peak ratio | MAX 3 :1 | |
| Protective function |
Mains :
input overcurrent fuse. Inverter: overload protection.short circuit protection, low voltage protection. (with battery anti-reverse connection, board). |
|
| Status Display | You can view parameters such as AC voltage, Ac frequency. PVvoltage, PV current. output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys. | |
| Voice prompt |
Low battery
protection buzzer long
beep
Low bottery buzzer beeps every second
Machine fault buzzer
beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second, and the output will be turned off after 30s. When the overload is greater than l50%, the output wlll be turned off after 300ms. |
|
| Operating temperature | -10°C~50°C | |
| Storage temperature | -15°C~45°C | |
| Relative temperature | 20%~95% no condensation | |
| Noise | ≤45db | |
| Dimension L×W×H(mm) | 527×330×149 | 545×400×200 |

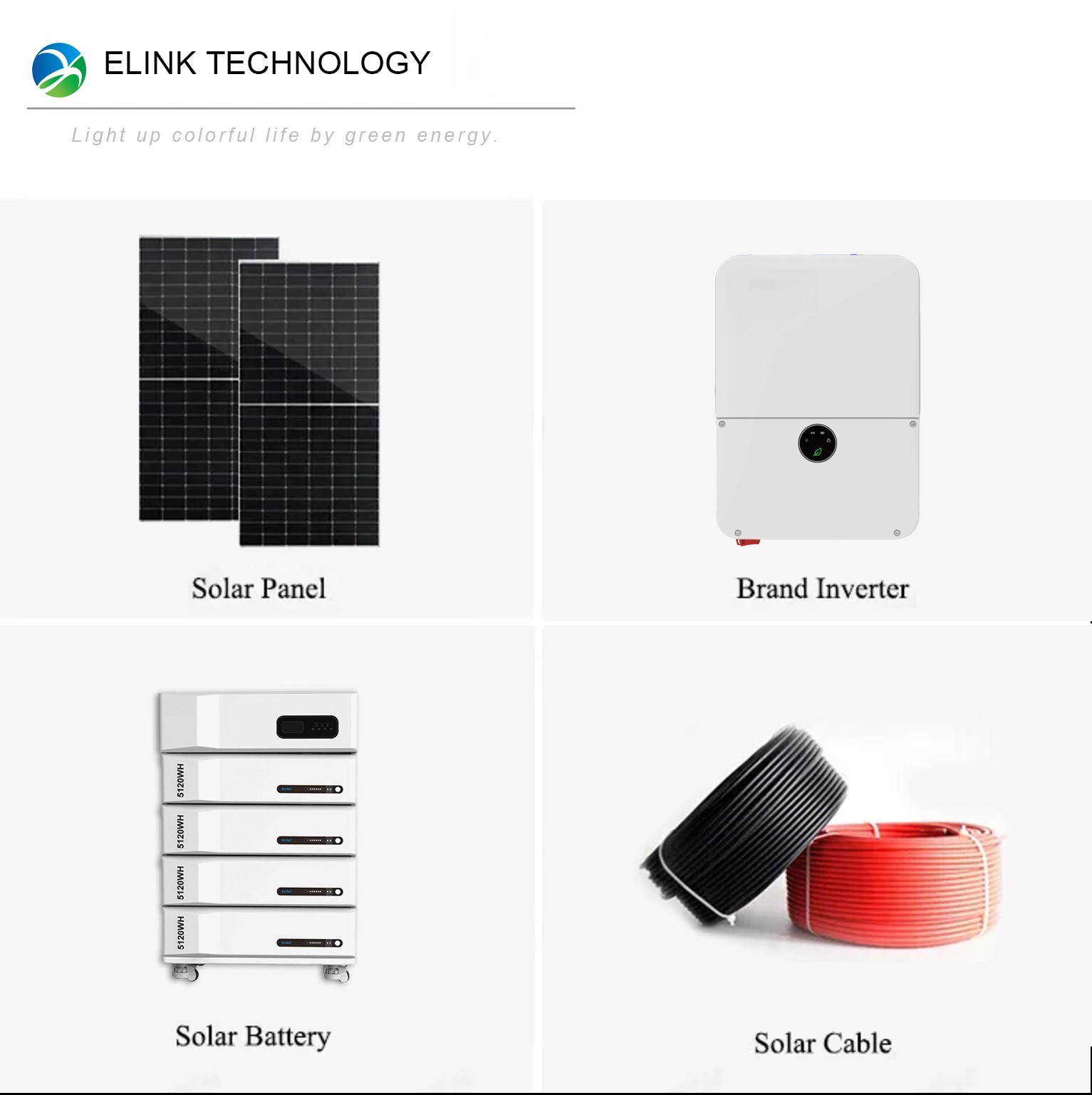

Key Features:
- Capacity: 10~15kW output, suitable for medium-sized residential properties.
- Hybrid Functionality: Integrates solar power, battery storage, and grid backup for reliable energy supply.
- Inverter: Premium brand inverter for maximum efficiency and long-term durability.
- Battery Storage: Advanced energy storage system ensures uninterrupted power during grid outages or peak demand.
- Solar Panels: High-efficiency solar panels provide maximum energy generation.
- Customizable: Flexible configurations to meet specific property and energy requirements.

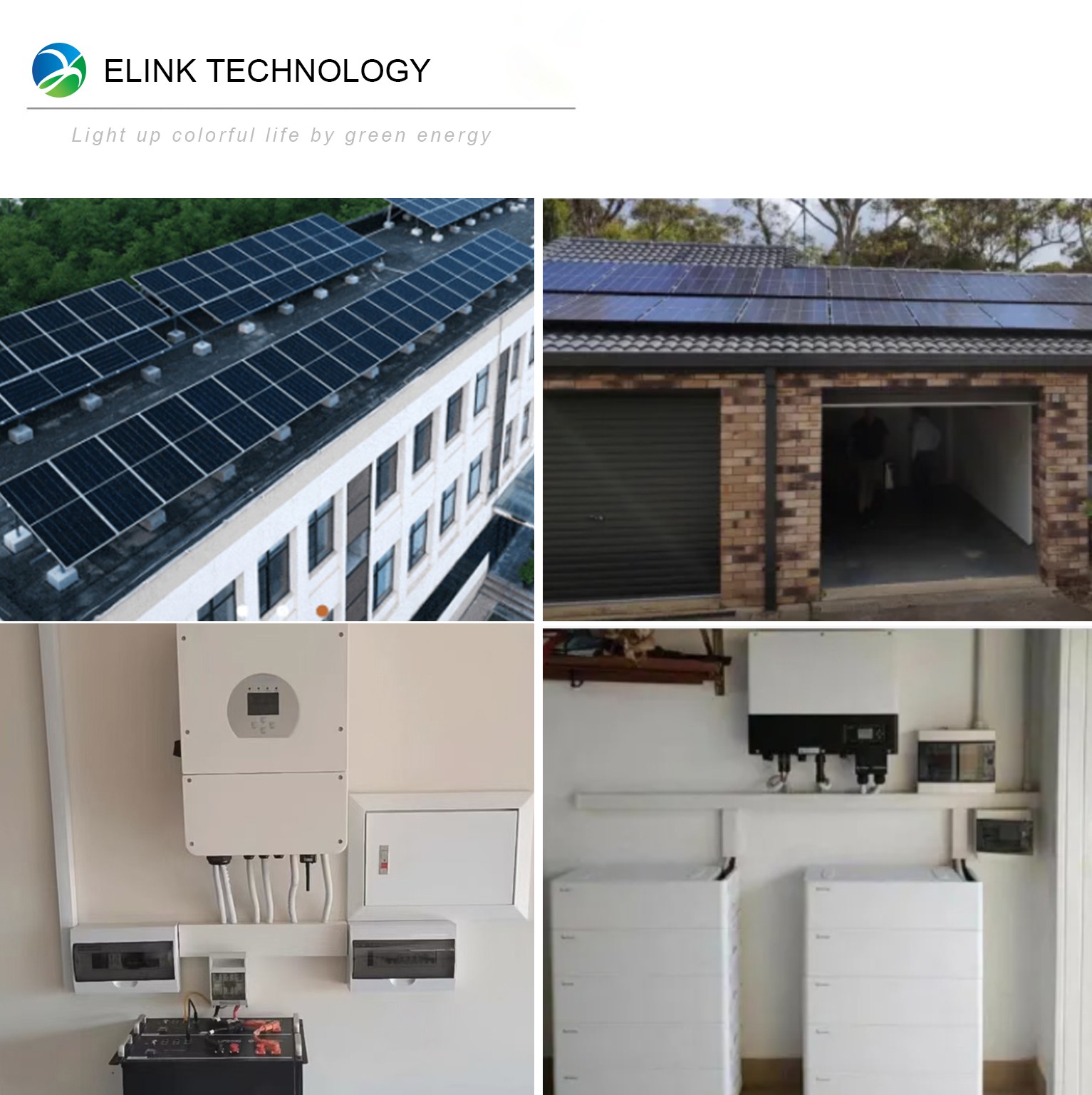

Applications:
- Medium-Sized Residential Homes
- Homes in Areas with Unstable Grid Power
- Properties with Moderate Energy Demands
- Eco-Friendly Living Solutions
- Residences Seeking Cost-Effective Energy Independence
Why Choose This Hybrid System?
- Efficiency: Designed for optimized energy generation and smart energy management.
- Reliability: Brand inverter ensures stable performance and consistent power supply.
- Sustainability: Reduces reliance on the traditional grid and minimizes carbon footprint.
- Flexibility: Seamlessly combines solar, battery, and grid power for maximum reliability.
Customization Options:
We offer customization options, including different battery capacities, solar panel configurations, and inverter brands, to create the ideal energy solution for your home.
Contact Us:
For detailed specifications, pricing, and tailored solutions, contact our expert team today. We are committed to delivering high-performance hybrid solar systems for residential use.
