Integrated ESS (Ind/Com)

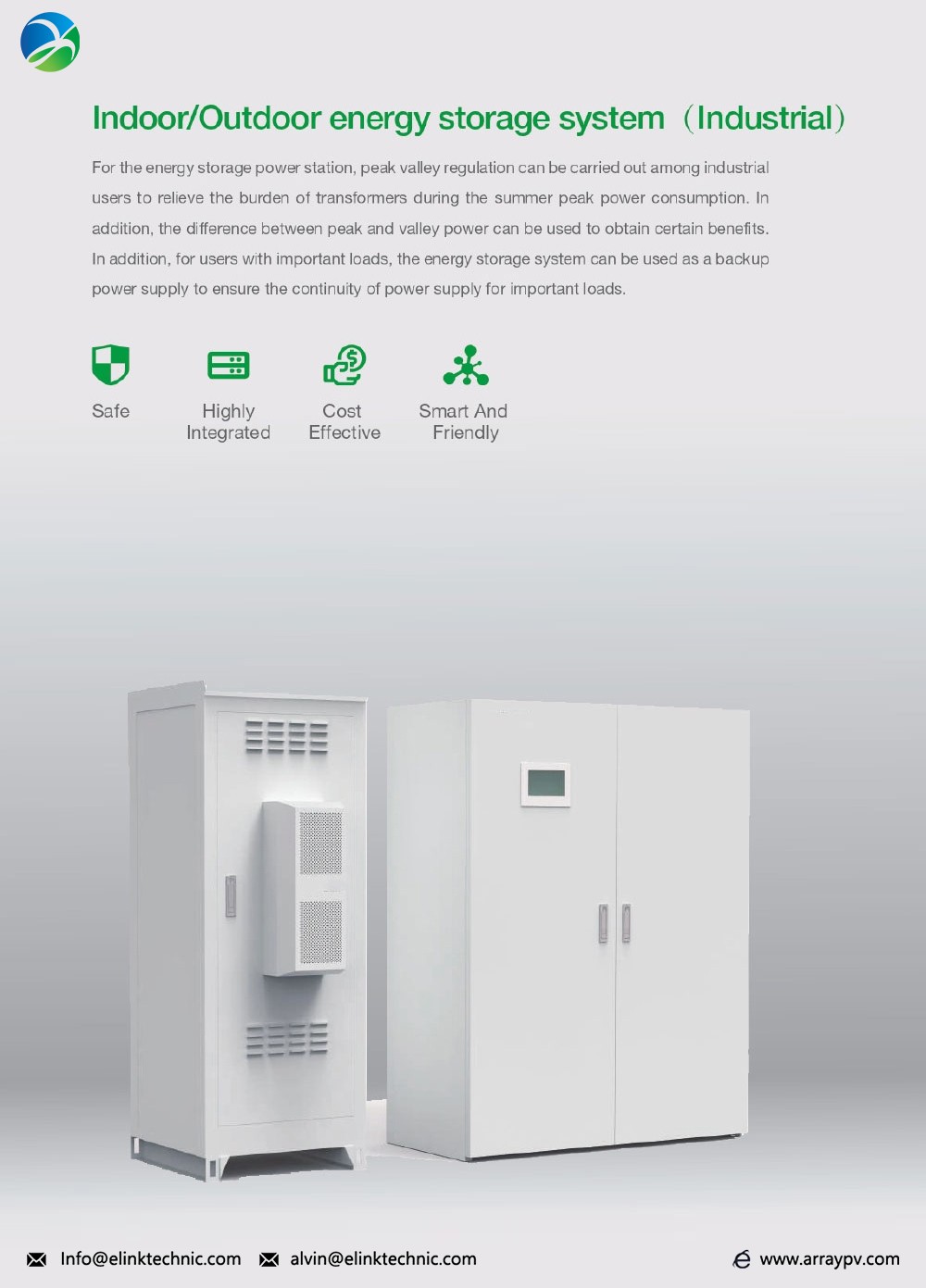

I/O Energy Storage system

  • Product Detail

Paremeter

Battery Model 384V 100AH 512V 200AH
Rate capacity 38.4 kwh 102.4 kwh
Voltage range 324~438V 432~584V
BMS communication interfac
CAN, RS485
CAN, RS485
Weight 400 kg 1100 kg

Solar Power Parameter

Rate Power 20 kw 50 kw
Max output power 22 kw 55 kw
Rate output voltage 3/N/PE, 230/400 3/N/PE, 230/400
MPPT voltage range 250~900V 650~900V
Weight 100 kg 100 kg

System Parameter

Inverter carton size 600×900×1500mm 600×900×1500mm
Battery container size 600×600×2000mm
600×1000×2000mm
Ingress Protection 20 (Indoor) / 54 (Outdoor) 20 (Indoor) / 54 (Outdoor)
Operature temperature range -20~55℃ -20~55℃
Cooling model Air cooled/Water cooling/Natrue cooling Air cooled/Water cooling/Natrue cooling
Certification CE, UN38.3, RoHS CE, UN38.3, RoHS
