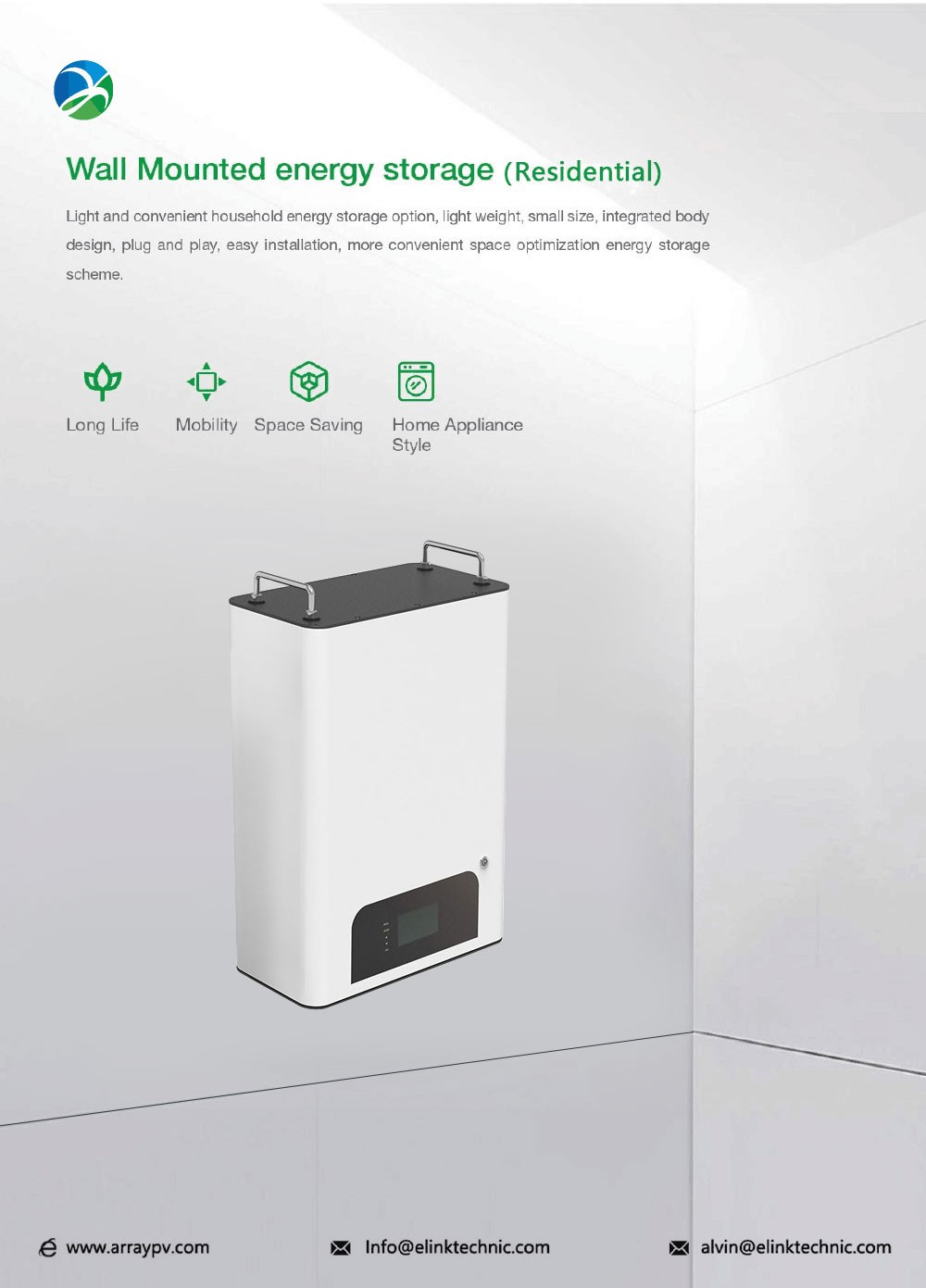

Wall Mounted (Res)

Wall mounted 48V150AH-2

  • Product Detail

Model  ELWM48150-2

Standard voltage
48VDC
Voltage 37.5~54.75VDC
Nominal Capacity
150AH

Rate Capacity

7.2KWh

Communication protocol

CAN/RS485/WiFi/4G/Blue Tooth

Efficiency (at 0.5C)

98%
Cell self-discharge
<5%/Month
Maximum Allowed Module in Parallet
15(108KWh)
Depth of Discharge
up to 100%
Useful Life
8~10 Years
Cycle Life
6000(80% DoD)
Protection
Over temperature, over current, short  circuit, over-charging, over-discharging, Low voltage.

Charge Specifications

Recommended Charge Current
50A
Maximum Charge Current
100A
Recommended Charge Voltage
54V
Maximum Charging Voltage 54.75V

Discharge Specifications

Recommended Discharge Current
25A
Maximum Discharge Current
50A
Recommended Low Voltage Discorrent
41.25V
Battery Low Voltage Protection
39.75V
Battery Recovery Voltage
45V

Mechanical Specifications

Dimenstions
690×530×215mm
Weight
70kg
Terminal Type
M6
Case Material
Industrial Grade Iron
Ingress Protection
IP20
Installation
Cabinet or Wall installation
Cell Typo Chemistry
LiFePO4

Compliance Specifications

Certifications
CE, FCC, CCC
Shipping Classification
UN38.3, UN3480, Class 9

Temperature Specifications

Discharge Temperature
-20~65℃
Charge Temperature 0~55℃
Storage Temperature
-20~45℃
