Changchun Elink Technology Co.,Ltd.
|

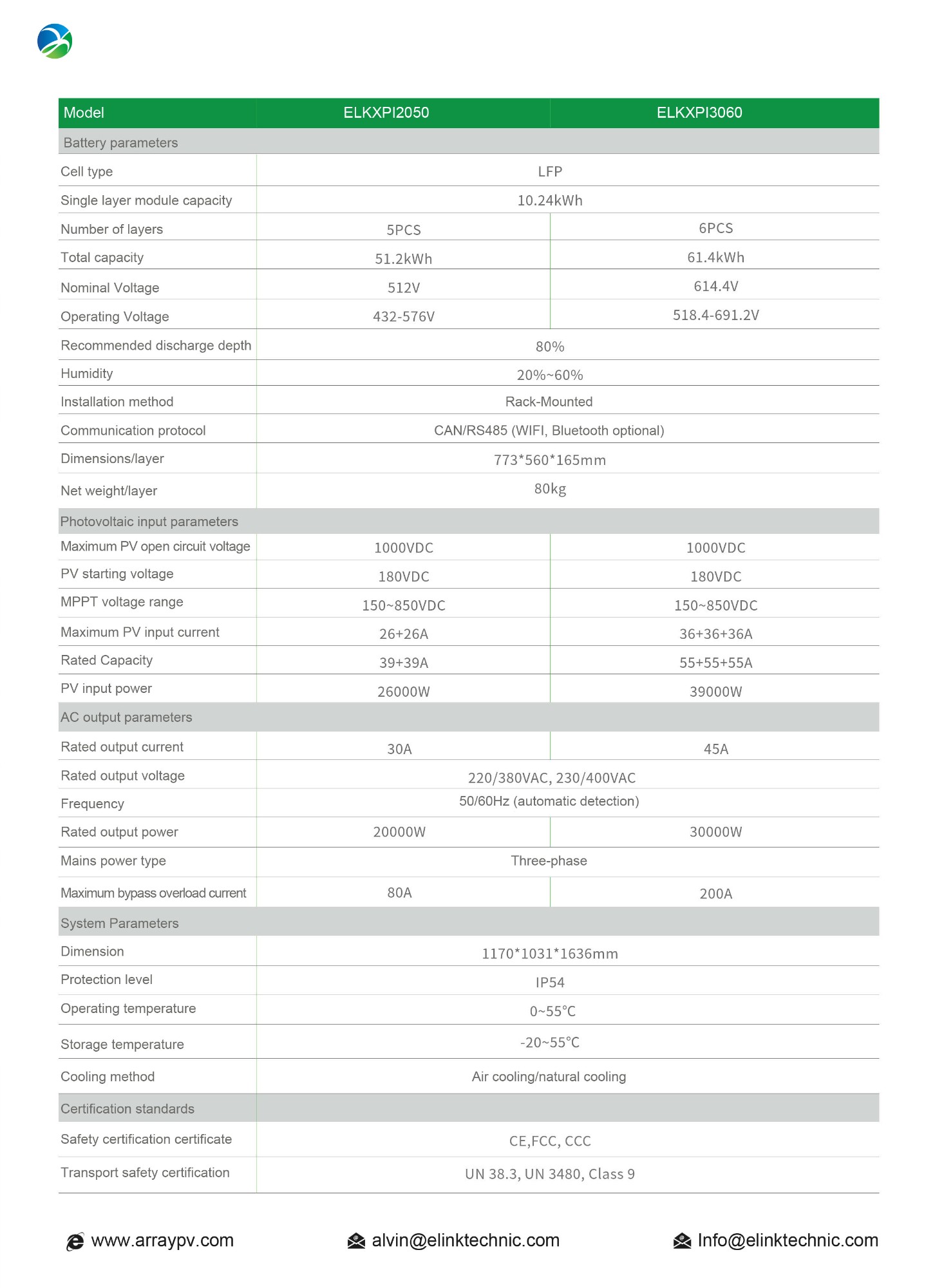

Model |
ELKXPI2050 |
ELKXPI3060 |
|
Battery parameters |
|
|
|
Cell type |
LFP | |
| Single layer module capacity | 10.24kwh | |
|
Number of layers |
5 | 6 |
|
Total capacity |
51.2kwh |
61.4kwh |
|
Nominal Voltage |
512V | 614.4V |
| Operating Voltage | 432~576V | 518.4~691.2V |
|
Recommended DOD |
80% | |
|
Humidity |
20%~60% | |
|
Installation method |
Rack-Mounted |
|
|
Communication protocol |
CAN/RS485 (WIFI, Bluetooth optional) | |
|
Dimensions/layer |
773×560×165mm |
|
|
Net weight/layer |
80kg |
|
|
Photovoltaic input parameters |
||
|
Maximum PV open circuit voltage |
1000VDC | |
|
PV starting voltage |
180VDC | |
|
MPPT voltage range |
150~850VDC | |
|
PV input current |
(26+26)A | (36+36+36)A |
|
Maximum PV input current |
(39+39)A |
(55+55+55)A |
|
PV input power |
26 kw | 39 kw |
| AC output parameters |
|
|
| Rated output current | 30A | 45A |
| Rated output voltage |
220~380VAC, 230~400VAC |
|
|
Frequency |
50/60Hz (automatic detection) | |
|
Rated output power |
20kw | 30kw |
|
Mains power type |
Three-phase | |
|
Maximum bypass overload current |
80A | 200A |
System Parameter |
||
|
Dimension |
1170×1031×1636mm | |
|
Protection level |
IP54 | |
|
Operating temperature |
0~55℃ | |
|
Storage temperature |
-20~55℃ | |
|
Cooling method |
Air cooled/Natrue cooling | |
|
Certification standards |
|
|
|
Safety certification certificate |
CE, FCC, CCC | |
|
Transport safety certification |
UN38.3, UN3480, Class 9 |
|
