600~700Wp

210mm 600-620Wp PERC

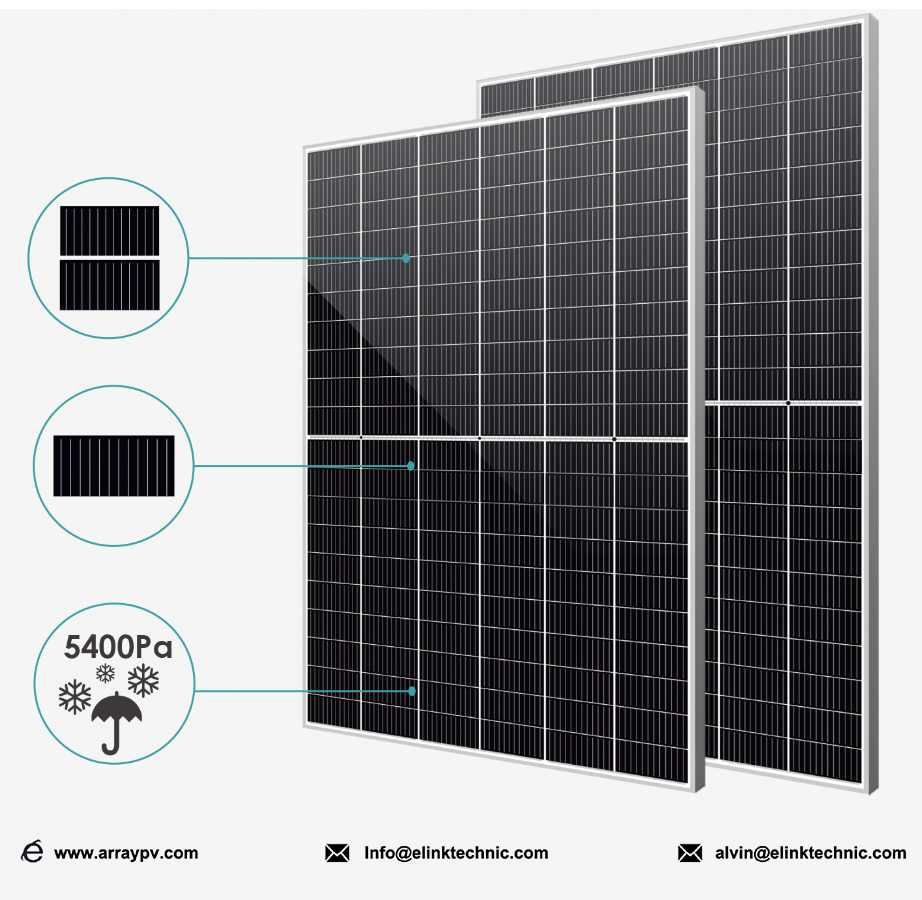

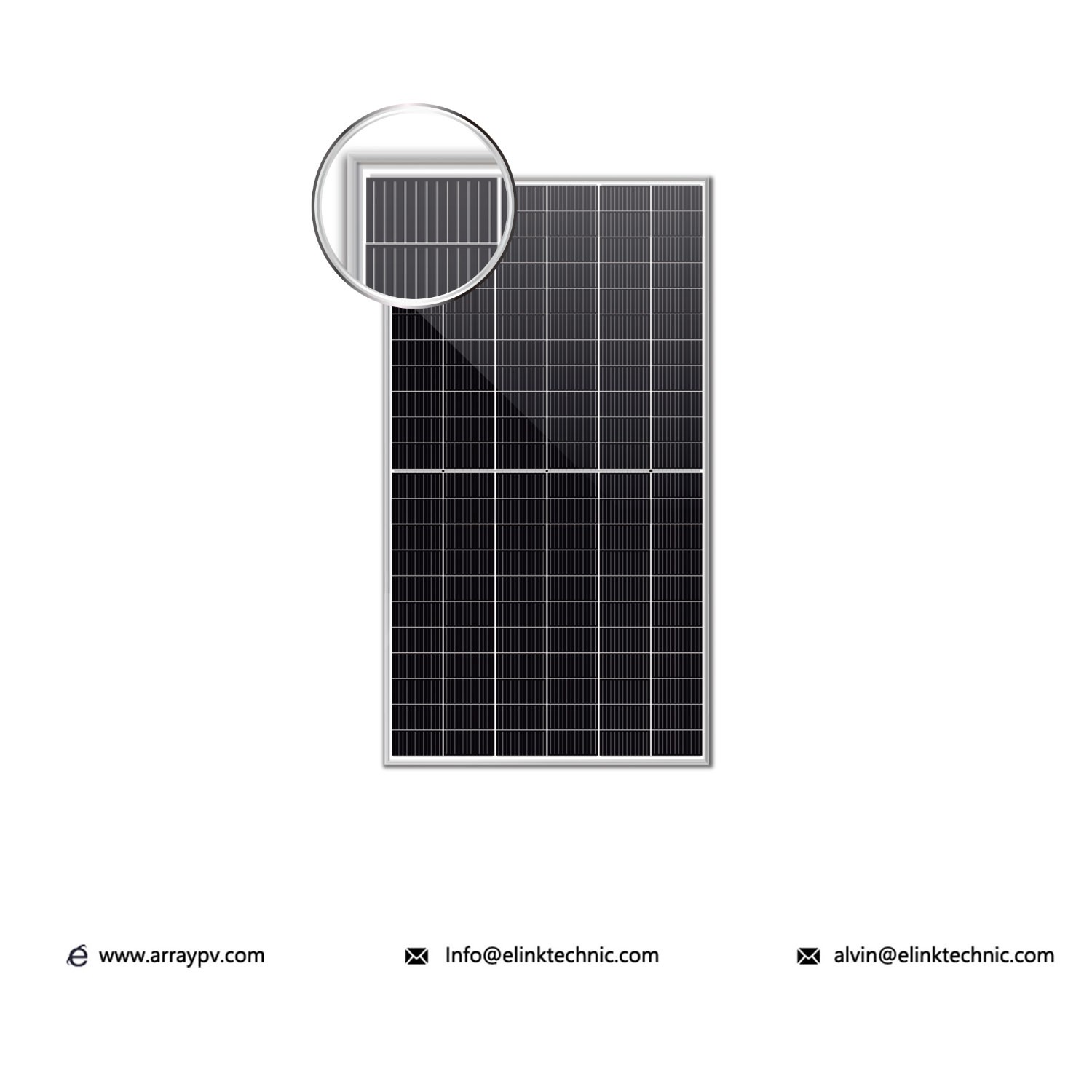

PERC 210mm Solar Cell 670W Solar Panel's efficiency up to 21.6%.

Based on the 210mm large-size silion wafer and mono perc solar cell, 210mm solar panel comes with several innovative design features allowing high power output to 670W. Excellent temperature coefficient and low irradiation performance brings the great power. Furthermore, benefit from high-density encapsulation technology, the efficiency of 210mm solar panel can reach up to 21.6%.


1.MBB Technology
210mm Solar Panel adopts 12busbar technology. More busbar of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.

2.High Reliability
With stronger resistance against hotspots and excessive temperature, The solar panel maintain high reliability. It optimized the frame design of the 210 large module, which allows for better load performance and suits for various scenarious.

Low-voltage
Higher Solar Panel String Power Output

Based on the aim of improving the system efficiency and reducing the balance of system costs, Solar's research and development team has introduced an innovative design of low- voltage and higher module string power output.

  • Product Detail

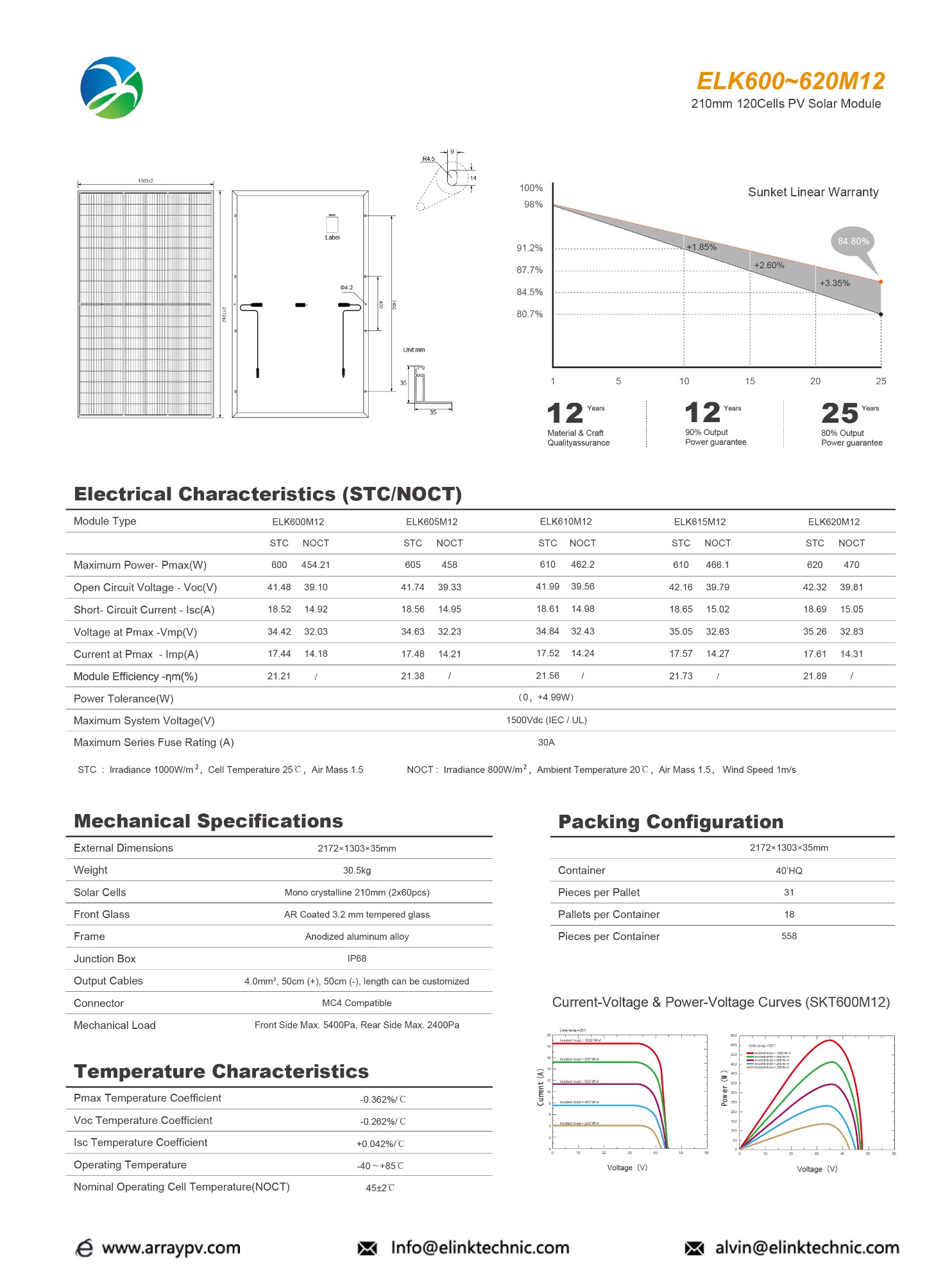

Mechanical Specifications

External Dimensions
2172x1303x35mm
Weight
30.5kg
Solar Cells
Mono crystalline 182mm (2x60pcs)
Front Glass
AR Coated 3.2 mm tempered glass
Frame
Anodized aluminum alloy
Junction Box
IP68
Output Cables
4.0mm², 50cm (+), 50cm (-), length can be customized
Connector
MC4 EVO2
Mechanical Load
Front Side Max. 5400Pa, Rear Side Max. 2400Pa


Packing Configuration

Dimensions
2172x1303x35mm
Container
40’HQ
Pieces per Pallet
31
Pallets per Container
18
Pieces per Container
558
