500~600Wp

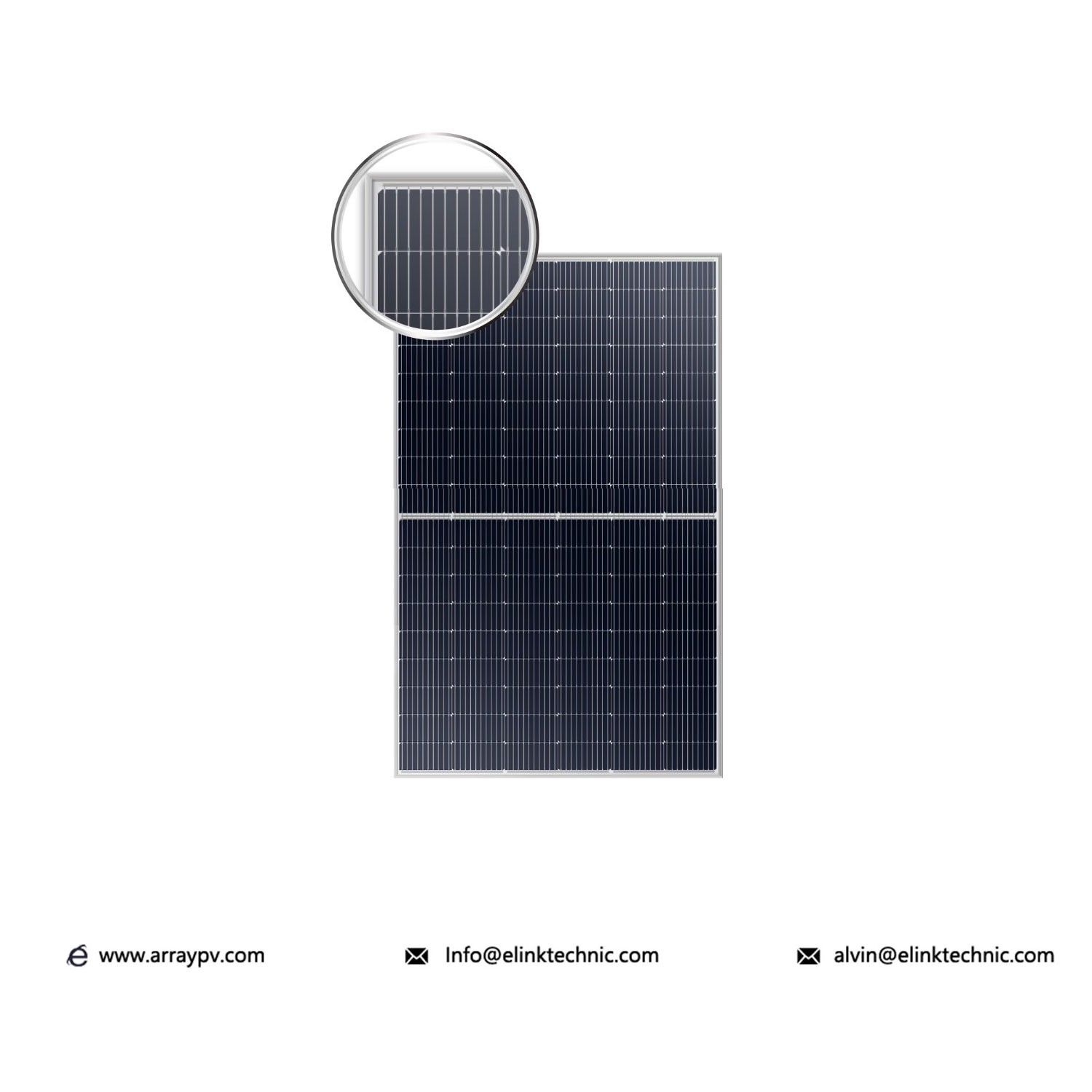

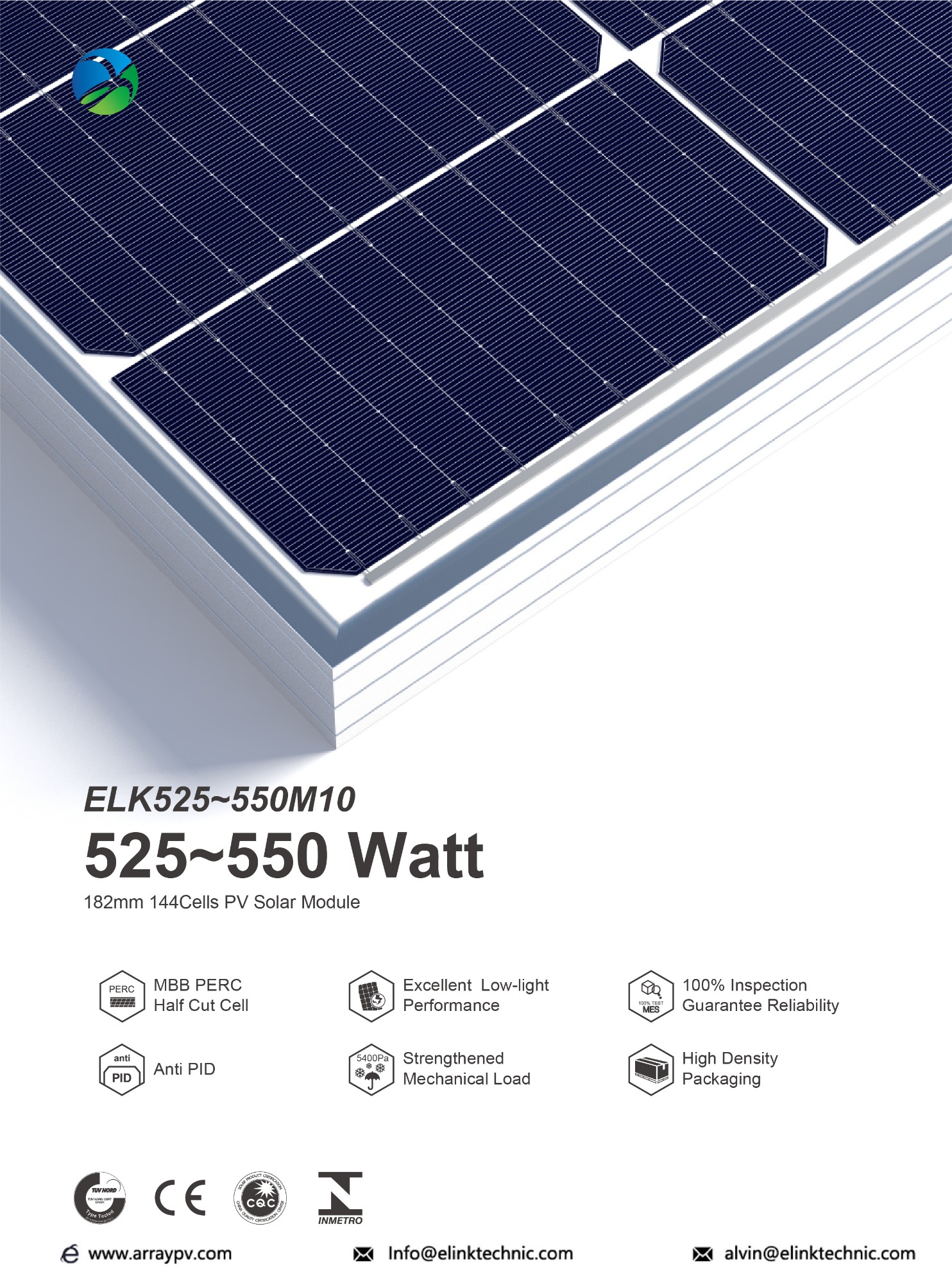

182mm 525-550Wp PERC

PERC 182mm Solar Cell with Solar Panel's efficiency up to 21.47%.

182mm solar panel use 182mm 10BB/11BB solar cell, increases the wafer size, optimizes the layout profoundly and decreases the invalid power gereration area.

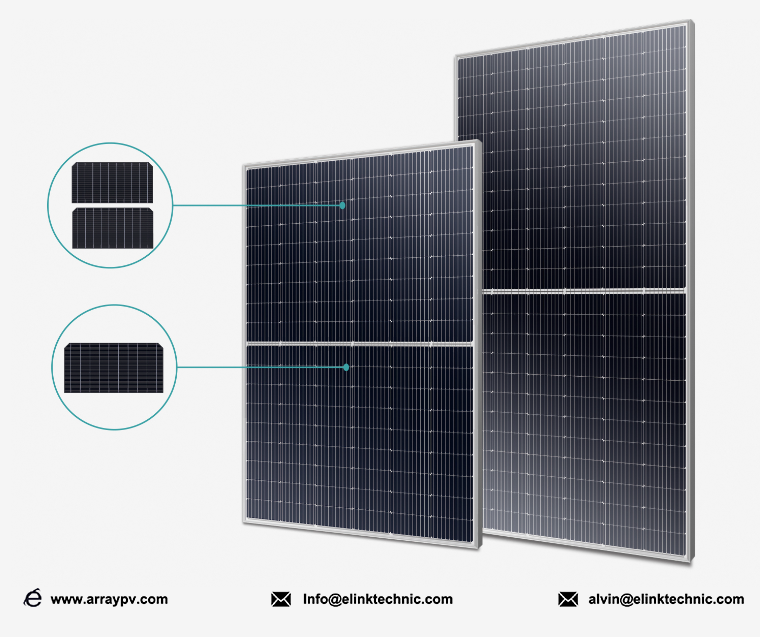

1.Half Cell Technology
The half-cut cell design can decrease the power loss by the shadow effectively.The optimized circuit design not only realizes the maxium power output but also assures the reliability of solar panels.

2.MBB Technology
182mm Solar Panel adopts multi-busbar technology. More busbar of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.
  • Product Detail

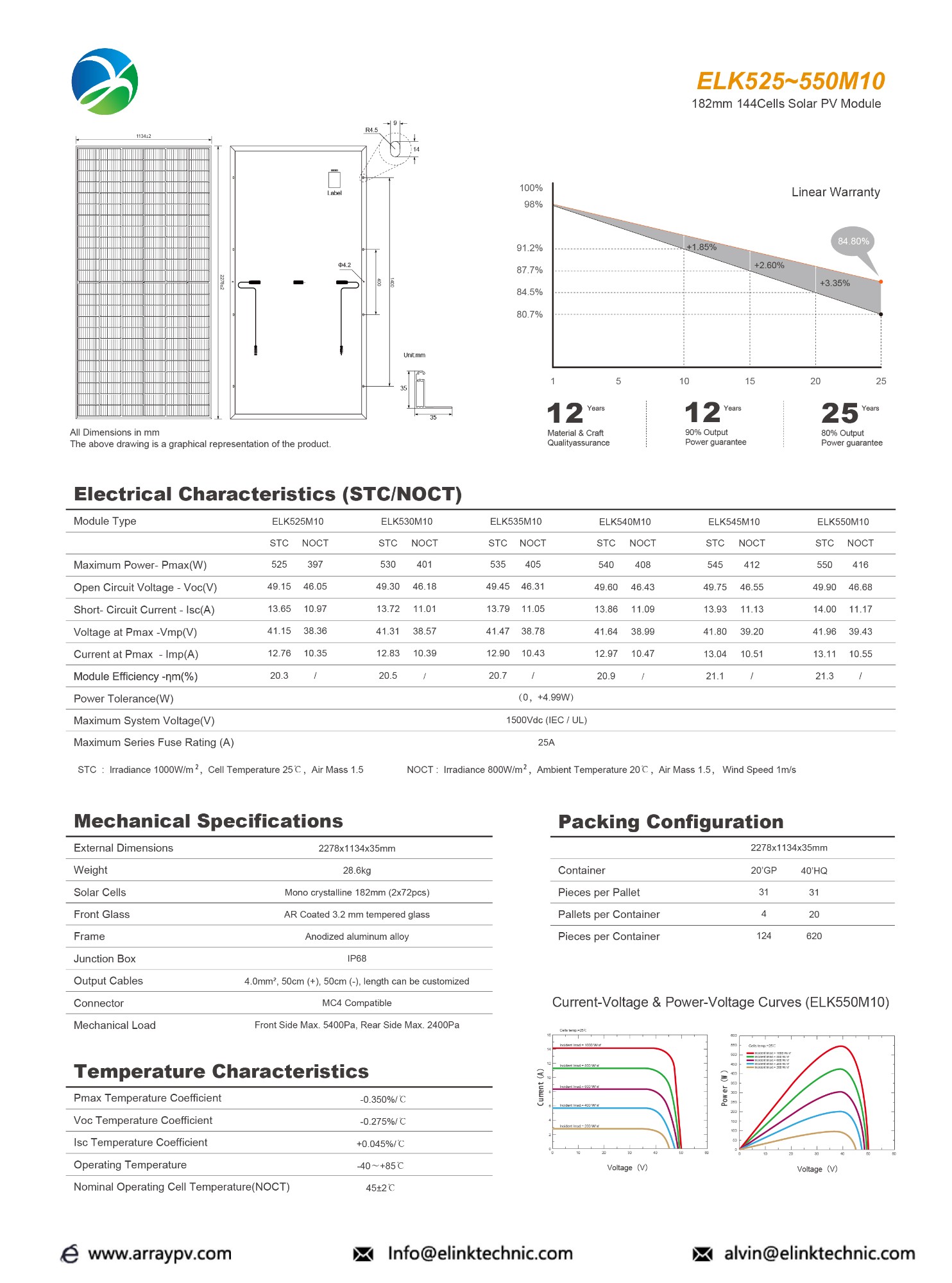

Mechanical Specifications

External Dimensions
2278x1134x35mm
Weight
28.6kg
Solar Cells
Mono crystalline 182mm (2x72pcs)
Front Glass
AR Coated 3.2 mm tempered glass
Frame
Anodized aluminum alloy
Junction Box
IP68
Output Cables
4.0mm², 50cm (+), 50cm (-), length can be customized
Connector
MC4 Compatible
Mechanical Load
Front Side Max. 5400Pa, Rear Side Max. 2400Pa


Packing Configuration

Dimensions
2278x1134x35mm
Container
20’GP
40’HQ
Pieces per Pallet
31 31
Pallets per Container
4 20
Pieces per Container
124 620


PREVIOUS:182mm 440~460Wp PERC

NEXT:182mm 385~410Wp PERC
