Changchun Elink Technology Co.,Ltd.

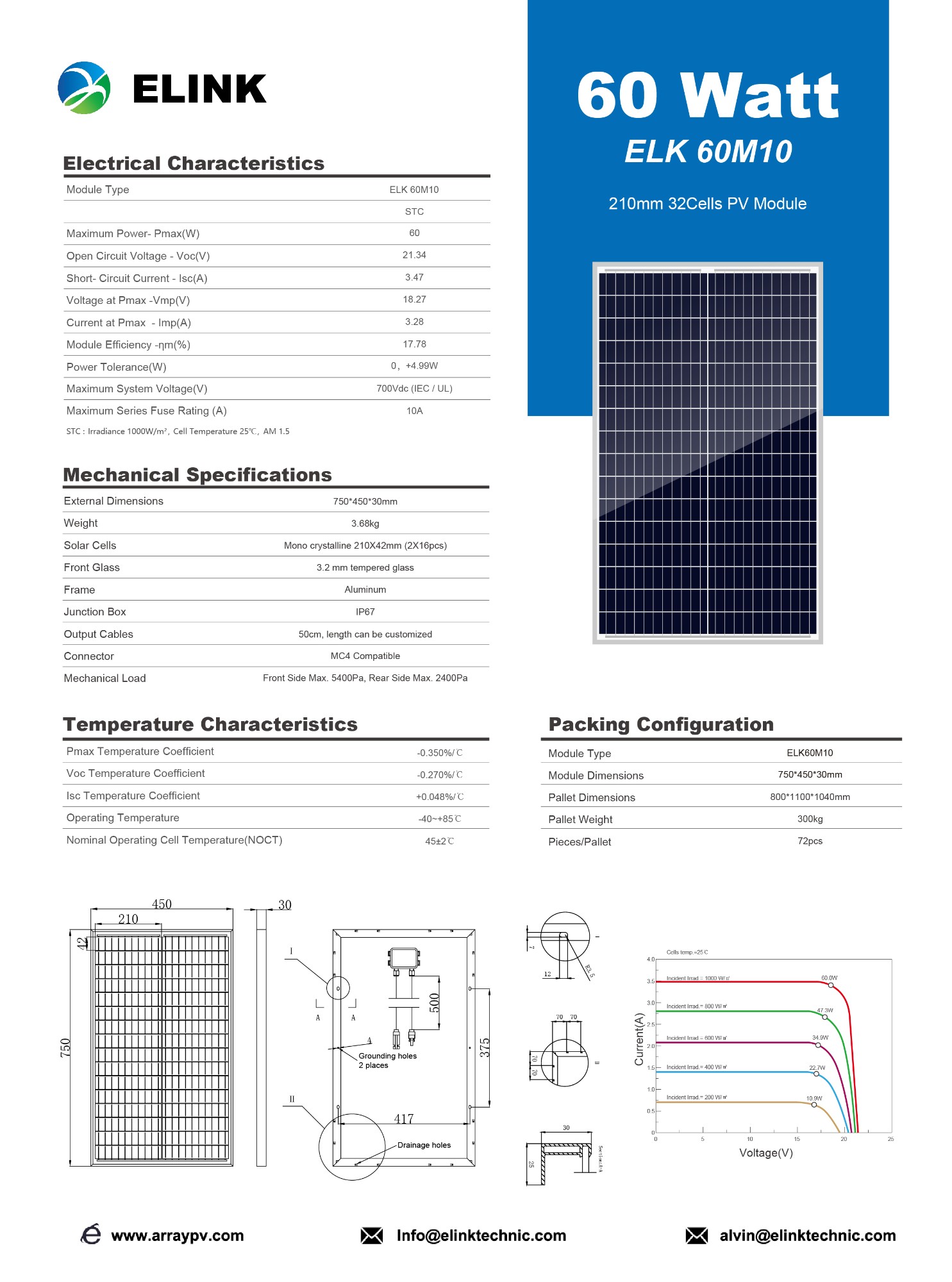

Mechanical Specifications |
|
|
External Dimensions
|
750x450x30mm
|
|
Weight
|
3.68kg
|
|
Solar Cells
|
Mono crystalline 210x42mm (2x16pcs)
|
|
Front Glass
|
AR Coated 3.2 mm tempered glass
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction Box
|
IP67
|
|
Output Cables
|
4.0mm², 50cm (+), 50cm (-), length can be customized
|
|
Connector
|
MC4 Compatible
|
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
Packing Configuration |
||
|
Module Dimensions
|
750x450x30mm
|
|
|
Pallet Dimensions |
800x1100x1040mm |
|
|
Pallet Weight |
300kg | |
|
Pieces per Pallet
|
72 | |
Key Features：
-
Large 210mm cell format for higher power output
-
High conversion efficiency with monocrystalline silicon
-
Advanced PERC technology for improved energy yield
-
Low degradation rate and long service life
-
Excellent performance under low-light conditions
-
Compatible with mainstream module manufacturing lines
Applications：
-
Utility-scale solar power plants
-
Commercial and industrial (C&I) PV systems
-
Ground-mounted solar installations
-
High-efficiency solar module manufacturing
-
Large-scale renewable energy projects
-
Grid-connected and off-grid PV systems
